universal embedded linux modules
device picture software info interfaces description
firmware process communications
S3720P s3720p.gif Linux
Kernel 2.4.4
JFFS Filesystem 		info (german) RS232 RS485, ISDN, TCP/IP programmable rs232 communication for value aquisition and controlling
DTMF decoding, speech output, SMS-alarming

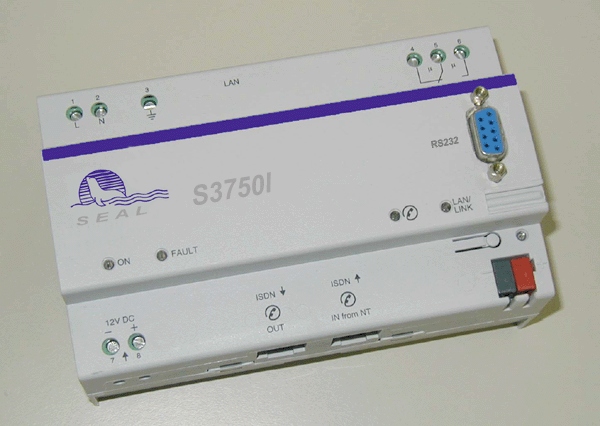

S3750 s3750.gif Linux
Kernel 2.4.4
JFFS Filesystem 		info (german) 1 relay output
1 contact input
RS232 		ISDN or PSTN
RS485
TCP/IP 		programmable rs232 communication for value aquisition and controlling
DTMF decoding, speech output, SMS-alarming
configuration and controlling by browser

controllers, extension modules
device picture software info interfaces description
firmware process communications
S5611C s5611cfoto1.jpg programming
Flash: 2.99E 		data sheet
manual 		DIN41612
4AI 2AO 8DI 4DO 		RS232(f)
RS232(m)
RS485 		freely programmable controller, external modem / terminaladapter support, cycle times 5-100ms

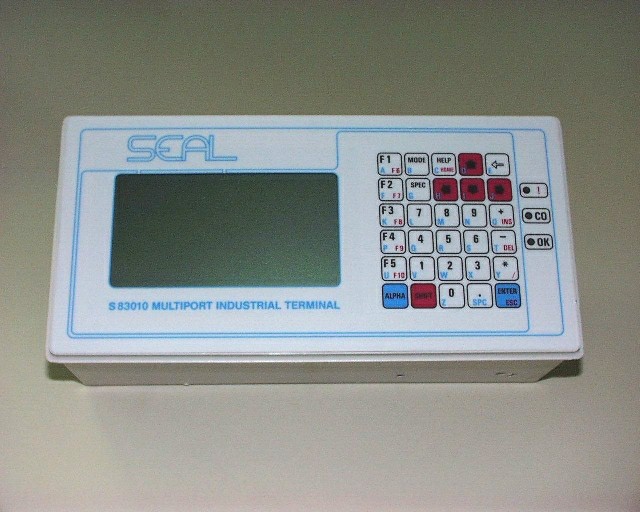

S5611D 5611 programming data sheet
manual 		DIN41612
4AI 2AO 8DI 4DO 		2*RS232 RS485 freely programmable controller with display and keyboard, otherwise like S5611C
S5612 5612 programming
not DeTe:
Flash:2.99h 		flyer
manual 		plug in connectors
4AI 4AO 16DI 4DO 8LED 		2*RS232 RS485 ISDN
optional profibus DP 		freely programmable controller with ISDN basic rate interface; supports data exchange, alarming or remote control X.75 or PPP (HTML pages for controlling), optional profibus DP (slave)
S5612D 12d programming Flash manual plug in connectors
4AI 4AO 16DI 4DO 8LED 		2*RS232 RS485 ISDN freely programmable controller with display and foil keybord, ISDN basic rate interface; supports data exchange, alarming or remote control (X.75) profibus not possible

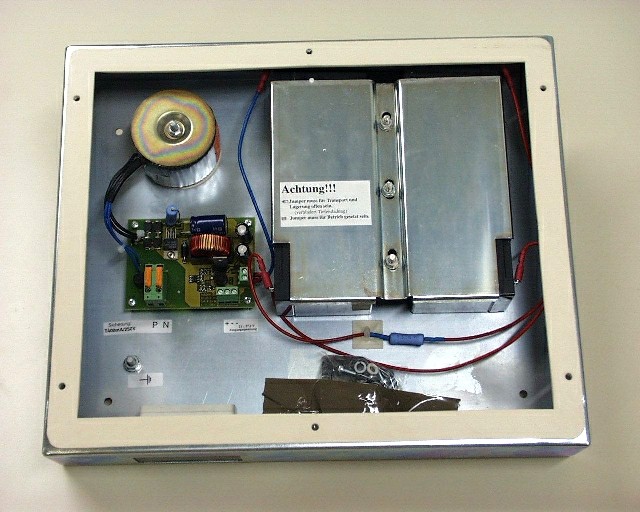

S5614 s5614.jpg programming Flash:2.99h manual plug in connectors
1AI 8DI 4DO 		RS232 RS485 ISDN TCP/IP freely programmable controller with alphameric display (16 digits), ISDN basic rate interface; supports data exchange, alarming or remote control X.75 or PPP (HTML pages for controlling via ISDN or ethernet)
S5615

NEMO 		s5615.jpg programming
Flash:2.99v 		manual
flyer 		d sub connectors
4AI 2AO 8DI 2DO 		RS232 RS485 ISDN modem GSM freely programmable controller with ISDN basic rate interface, internal or external modem or GSM module; supports data exchange, alarming or remote control X.75, V.110 or PPP (HTML pages for controlling via ISDN or GSM)

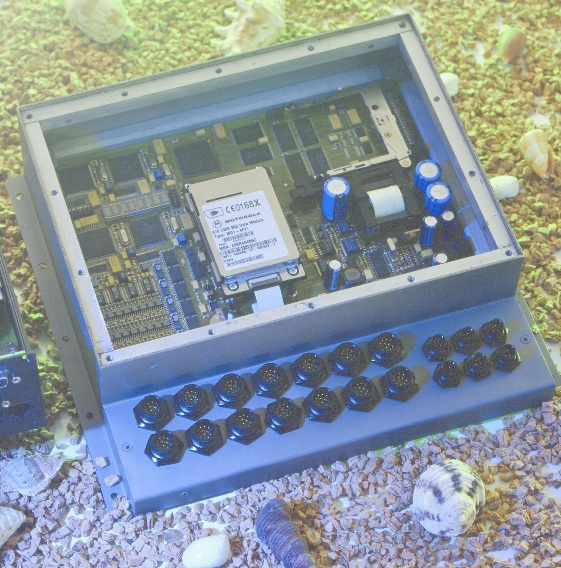

S5616

NEMO 		s5616.jpg programming
Flash:2.99b14 		manual
flyer 		Deutsch connectors
16AI 8AO 16DI 16DO 		RS232 RS485 ISDN GSM TCP/IP profibus-DP IrDA freely programmable controller with ISDN basic rate interface, optional GSM module; supports data exchange, alarming or remote control X.75, V.110 (GSM) or PPP (HTML pages for controlling via ISDN, GSM or GSM) profibus DP (slave) sea water resistant case and connectors, alphameric display (8 digits), 4 DSPs for input capturing and data output

S5618 		S5618 Linux
Kernel 2.4.4
JFFS Filesystem 		  plug in connectors
8DI 2DA 6LED 		TCP/IP PSTN RS485 RS232(m) RS232(f,console) MPC850 with embedded linuxoperating system
drivers for I/O, SEAL programming software, LEDs etc. easy to use PSTN interface (/proc interface); dial up from PC or to the internet (sending emails by use of ssmtp)
S5651 s5651.jpg EProm manual DIN4161
16DI 		RS485 extension module for S56 controllers with RS485 field bus
S5661 s5661.jpg EProm manual DIN4161
8DO 		RS485 extension module for S56 controllers with RS485 field bus
S5671 s5671.jpg Flash manual DIN4161
8AI 		RS485 extension module for S56 controllers with RS485 field bus
S5681 Flash manual DIN4161
8AO 		RS485 extension module for S56 controllers with RS485 field bus
S5703N s5703 programming Flash:2.99b8 manual
profibus 		2*DIN4161
16AI 8AO 16DI 16DO 		2*RS232 profibus ISDN freely programmable controller with fast MPC8260 PowerPC CPU (1ms cycle time), profibus DP (slave)
S5703 s5703 programming
firmware 2.99o 		manual
profibus 		2*DIN4161
16AE 8AA 16DE 16DA 		2*RS232 profibus freely programmable controller with MC68030, profibus DP (slave) this device is available no more
A firmware update is neccessary as older versions do not run after Jan. 1, 2004. It is possible to turn the time backwards if you do not want to make a firmware upgrade.
S9704   programming Flash manual 8LED 4switches RS232 2*ISDN
VME iterface 		freely programmable communications controller, VME master
S9901   EProm manual 2*DIN41612
16DE 		VME interface VME slave interface for S9704, digital inputs, opto couplers, 220V channel to channel
S9931   EProm manual   2*A/B (RJ11)
VME-Interface 		VMS slave for S9704, A/B adapler for two analogue telephones or modems
S9961   EProm manual 2*DIN41612
16DA 		VME interface VME slave interface for S9704, digital outputs, relais, 220V channel to channel

Timmy 		timmy Linux
Kernel 2.4.1
JFFS Filesystem 		  plug in connectors
4AI 32DI 8DO 8LED 		2*TCP/IP ISDN PSTN GSM 2*RS232(m) RS232(f,console) MPC8260 with embedded-Linuxoperating system, DSP for inputs and outputs
linux drivers for i/o, leds, SEAL programming interface, ISDN, RTC etc. easy to use interface for ISDN/PSTN (proc interface), PPP for dial up frm PC or to internet (email sending with ssmtp)

ISDN devices for basic rate interface
device picture software info interfaces description
firmware
SLink21 sl21 windows driver
EProm:21.09.01 		manual RS232 ISDN terminaladapter serial 9600-115200 baud ISDN: V.110 V.120 X.75 PPP synchron
replaced by SLink21N
SLink21N sl21n windows driver
Flash:14.12.01 		manual RS232 ISDN terminaladapter serial 9600-115200 baud ISDN: V.110 V.120 X.75 PPP synchron
SLinkWeb sl21n Configuration vs.1.3
Flash:8.5.02 		manual RS232 ISDN Webserver for C-Control from Conrad Electronic GmbH
allows remote control of C-Control by means of HTML pages of the webserver as well as speech and SMS alarming
SLink21EIB eib EIB connection tool 1.3N manual
EIB page 		RS232 ISDN for remote controlling of EIB systems, two devices needed for a connection
two versions available (PC or EIB side)
SLink25   Flash:1.13 manual RS232 ISDN V.24synchron terminaladapter with asynchronous dial port and sysnchronous data port (V.26bis synchron)

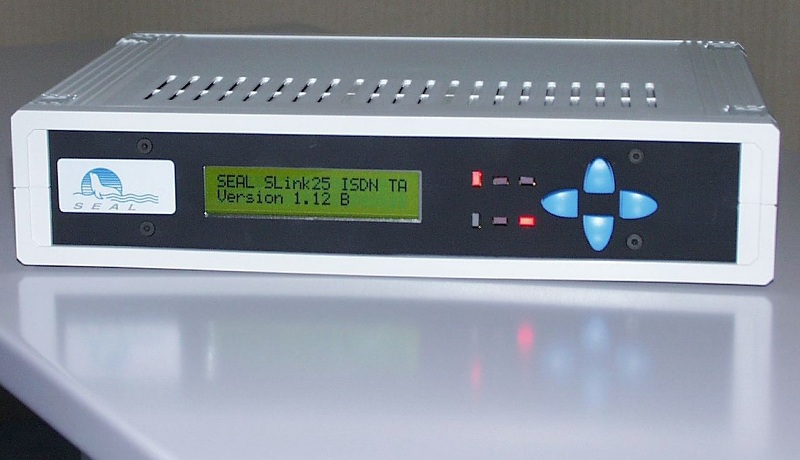

SLink25SE sl25 Flash:2.13 manual RS232 ISDN TCP/IP ferminaladapter for V.26bis synchronous connections via TCP/IP
rack- or desktop version
SLink31 sl31 EProm manual 2*RS232 ISDN VME master or slave, like two terminaladapters or for system solutions

ISDN devices for primary rate interface
device picture software info interfaces description
firmware
PLink01-V24 pl01 EProm manual 3*RS232
PCM-Bus 		VME slave interface, 3 V.24 or V.35 interfaces (PLink11 extension for up to 30 channels to build a multi port terminal adapter)
PLink01-MUX pl01 EProm manual PCM-Bus VME slave interface, B channel to PCM interface for PLink11,
PLink02-MUX   EProm manual PCM-Bus VME slave interface, B channel interface via PLink11, 6 channels with analogue modems for use with PLink11
PLink01-Tr pl01 EProm manual V.35
PCM-Bus 		VME slave interface, B channel interface via PLink11, V.35 interface, up to two cards per system
PLink11 pl11 X.25 packet handler
multiport terminal adapter 		manual 2*RS232 G.703 PCM-Bus VME master card, G.703 interface, PCM bus for slave interface, Q.921/Q.931 signalling, configuration port and printer interface (RS232 each)
